SAE Standard Carbon steel Keluli tahan karat O-Ring Face Seal Hydraulic Adapters
Pengedap ORFS untuk penyesuai ialah kaedah pengedap penting yang boleh menghalang kebocoran cecair atau gas dengan berkesan dan memastikan operasi normal sistem. Ia mempunyai kelebihan struktur ringkas, pemasangan mudah, dan rintangan tekanan tinggi, dan digunakan secara meluas dalam sistem hidraulik, industri automotif, dan bidang lain.
Penerangan Produk
Penyesuai hidraulik ORFS bahawa kesan cincin pengedap berkait rapat dengan saiz alur pengedap pada muka hujungnya. Penyesuai ORFS dibuat dengan keluli karbon dan keluli tahan karat, saiz dari -04 hingga -32. Bentuk produk boleh dibuat Lelaki kepada Lelaki, Lelaki kepada Perempuan, Perempuan kepada Perempuan dan termasuk gaya yang berbeza untuk lurus, siku, tee dan salib.
FS2403
FS2404
FS6400
FS6403
1FG
1FMData teknikal
ORFS LELAKI kepada LELAKI ORFS STRAIGHT ADAPTER (FS2403)
| Benang A | Benang B | Bahagian No | L | E | F | H1 | ||
| Dash | ORFS | Dash | ORFS | mm | mm | mm | mm | |
| -09 | 9 / 16-18 | -09 | 9 / 16-18 | 1F-0909 | 27 | 10 | 10 | 15.88 |
| -11 | 11 / 16-16 | -09 | 9 / 16-18 | 1F-1109 | 30 | 11 | 10 | 19.05 |
| -11 | 11/16 | -11 | 11 / 16-16 | 1F-1111 | 31 | 11 | 11 | 19.05 |
| -13 | 13 / 16-16 | -11 | 11 / 16-16 | 1F-1311 | 34 | 13 | 11 | 22.23 |
| -13 | 13 / 16-16 | -13 | 13 / 16-16 | 1F-1313 | 35 | 13 | 13 | 22.23 |
| -16 | 1-14 | -13 | 13 / 16-16 | 1F-1613 | 40 | 16 | 13 | 26.97 |
| -16 | 1-14 | -16 | 1-14 | 1F-1616 | 43 | 16 | 16 | 26.97 |
| -19 | 1.3 / 16-12 | -13 | 13 / 16-16 | 1F-1913 | 43 | 17 | 13 | 31.75 |
| -19 | 1.3 / 16-12 | -16 | 1-14 | 1F-1916 | 46 | 17 | 16 | 31.75 |
| -19 | 1.3 / 16-12 | -19 | 1.3 / 16-12 | 1F-1919 | 47 | 17 | 17 | 31.75 |
| -23 | 1.7 / 16-12 | -19 | 1.3 / 16-12 | 1F-2319 | 49 | 18 | 17 | 38.10 |
| -23 | 1.7 / 16-12 | -23 | 1.7 / 16-12 | 1F-2323 | 49 | 18 | 18 | 38.10 |
| -27 | 1.11 / 16-12 | -23 | 1.7 / 16-12 | 1F-2723 | 51 | 18 | 18 | 44.45 |
| -27 | 1.11 / 16-12 | -27 | 1.11 / 16-12 | 1F-2727 | 51 | 18 | 18 | 44.45 |
| -32 | 2-12 | -27 | 1.11 / 16-12 | 1F-3227 | 53 | 18 | 18 | 53.98 |
| -32 | 2-12 | -32 | 2-12 | 1F-3232 | 53 | 18 | 18 | 53.98 |
ORFS Male x NPT Male Straight Adapter (FS2404)
| Benang A | Benang B | Bahagian No | L | E | F | H1 | ||
| Dash | ORFS | Dash | NPT | mm | mm | mm | mm | |
| -09 | 9 / 16-18 | -02 | 1 / 8-27 | 1FN-0902 | 27 | 10 | 10 | 15.9 |
| -09 | 9 / 16-18 | -04 | 1 / 4-18 | 1FN-0904 | 32 | 10 | 15 | 15.9 |
| -09 | 9 / 16-18 | -06 | 3 / 8-18 | 1FN-0906 | 32 | 10 | 15 | 19.1 |
| -09 | 9 / 16-18 | -08 | 1 / 2-14 | 1FN-0908 | 38 | 10 | 20 | 23.8 |
| -11 | 11 / 16-16 | -02 | 1 / 8-27 | 1FN-1102 | 29 | 11 | 10 | 19.1 |
| -11 | 11 / 16-16 | -04 | 1 / 4-18 | 1FN-1104 | 34 | 11 | 15 | 19.1 |
| -11 | 11 / 16-16 | -06 | 3 / 8-18 | 1FN-1106 | 34 | 11 | 15 | 19.1 |
| -11 | 11 / 16-16 | -08 | 1 / 2-14 | 1FN-1108 | 39 | 11 | 20 | 23.8 |
| -13 | 13 / 16-16 | -06 | 3 / 8-18 | 1FN-1306 | 37 | 13 | 15 | 22.2 |
| -13 | 13 / 16-16 | -08 | 1 / 2-14 | 1FN-1308 | 42 | 13 | 20 | 23.8 |
| -13 | 13 / 16-16 | -12 | 3 / 4-14 | 1FN-1312 | 43 | 13 | 20 | 31.8 |
| -13 | 13 / 16-16 | -16 | 1-11.5 | 1FN-1316 | 46 | 13 | 25 | 34.9 |
| -16 | 1-14 | -08 | 1 / 2-14 | 1FN-1608 | 46 | 16 | 20 | 27.0 |
| -16 | 1-14 | -12 | 3 / 4-14 | 1FN-1612 | 46 | 16 | 20 | 31.8 |
| -16 | 1-14 | -16 | 1-11.5 | 1FN-1616 | 56 | 16 | 25 | 38.1 |
| -19 | 1.3 / 16-12 | -08 | 1 / 2-14 | 1FN-1908 | 49 | 18 | 20 | 31.8 |
| -19 | 1.3 / 16-12 | -12 | 3 / 4-14 | 1FN-1912 | 49 | 18 | 20 | 31.8 |
| -19 | 1.3 / 16-12 | -16 | 1-11.5 | 1FN-1916 | 52 | 18 | 25 | 38.1 |
| -23 | 1.7 / 16-12 | -12 | 3 / 4-14 | 1FN-2312 | 51 | 18 | 20 | 38.1 |
| -23 | 1.7 / 16-12 | -16 | 1-11.5 | 1FN-2316 | 56 | 18 | 25 | 38.1 |
| -23 | 1.7 / 16-12 | -20 | 1.1 / 4-11.5 | 1FN-2320 | 58 | 18 | 25 | 42.9 |
| -27 | 1.11 / 16-12 | -16 | 1-11.5 | 1FN-2716 | 58 | 18 | 25 | 44.5 |
| -27 | 1.11 / 16-12 | -20 | 1.1 / 4-11.5 | 1FN-2720 | 58 | 18 | 25 | 44.5 |
| -32 | 2-12 | -24 | 1.1 / 2-11.5 | 1FN-3224 | 61 | 18 | 26 | 54 |
ORFS Lelaki x UNO Penyesuai Lurus Lelaki (FS6400)
| Benang A | Benang B | Bahagian No | L | E | F | H1 | ||
| Dash | ORFS | Dash | UNO | mm | mm | mm | mm | |
| -09 | 9 / 16-18 | -07 | 7 / 16-20 | 1FO-0907 | 29 | 10 | 9 | 15.9 |
| -09 | 9 / 16-18 | -09 | 9 / 16-18 | 1FO-0909 | 31 | 10 | 10 | 19.1 |
| -09 | 9 / 16-18 | -12 | 3 / 4-16 | 1FO-0912 | 34 | 10 | 11 | 22.2 |
| -11 | 11 / 16-16 | -07 | 7 / 16-20 | 1FO-1107 | 34 | 11 | 9 | 19.1 |
| -11 | 11 / 16-16 | -09 | 9 / 16-18 | 1FO-1109 | 32 | 11 | 10 | 19.1 |
| -11 | 11 / 16-16 | -12 | 3 / 4-16 | 1FO-1112 | 35 | 11 | 11 | 22.2 |
| -11 | 11 / 16-16 | -14 | 7 / 8-14 | 1FO-1114 | 39 | 11 | 13 | 27.0 |
| -13 | 13 / 16-16 | -07 | 7 / 16-20 | 1FO-1307 | 36 | 13 | 9 | 22.2 |
| -13 | 13 / 16-16 | -09 | 9 / 16-18 | 1FO-1309 | 37 | 13 | 10 | 22.2 |
| -13 | 13 / 16-16 | -12 | 3 / 4-16 | 1FO-1312 | 37 | 13 | 11 | 22.2 |
| -13 | 13 / 16-16 | -14 | 7 / 8-14 | 1FO-1314 | 40 | 13 | 13 | 27.0 |
| -13 | 13 / 16-16 | -17 | 1.1 / 16-12 | 1FO-1317 | 44 | 13 | 15 | 31.8 |
| -13 | 13 / 16-16 | -21 | 1.5 / 16-12 | 1FO-1321 | 46 | 13 | 15 | 38.1 |
| -16 | 1-14 | -12 | 3 / 4-16 | 1FO-1612 | 45 | 16 | 11 | 27.0 |
| -16 | 1-14 | -14 | 7 / 8-14 | 1FO-1614 | 43 | 16 | 13 | 27.0 |
| -16 | 1-14 | -17 | 1.1 / 16-12 | 1FO-1617 | 47 | 16 | 15 | 31.8 |
| -16 | 1-14 | -21 | 1.5 / 16-12 | 1FO-1621 | 50 | 16 | 15 | 38.1 |
| -19 | 1.3 / 16-12 | -12 | 3 / 4-16 | 1FO-1912 | 49 | 18 | 11 | 31.8 |
| -19 | 1.3 / 16-12 | -14 | 7 / 8-14 | 1FO-1914 | 51 | 18 | 13 | 31.8 |
| -19 | 1.3 / 16-12 | -17 | 1.1 / 16-12 | 1FO-1917 | 49 | 18 | 15 | 31.8 |
| -19 | 1.3 / 16-12 | -21 | 1.5 / 16-12 | 1FO-1921 | 50 | 18 | 15 | 38.1 |
| -23 | 1.7 / 16-12 | -17 | 1.1 / 16-12 | 1FO-2317 | 54 | 18 | 15 | 38.1 |
| -23 | 1.7 / 16-12 | -21 | 1.5 / 16-12 | 1FO-2321 | 50 | 18 | 15 | 38.1 |
| -23 | 1.7 / 16-12 | -26 | 1.5 / 8-12 | 1FO-2326 | 52 | 18 | 15 | 47.6 |
| -27 | 1.11 / 16-12 | -21 | 1.5 / 16-12 | 1FO-2721 | 52 | 18 | 15 | 44.5 |
| -27 | 1.11 / 16-12 | -26 | 1.5 / 8-12 | 1FO-2726 | 52 | 18 | 15 | 47.6 |
| -27 | 1.11 / 16-12 | -30 | 1.7 / 8-12 | 1FO-2730 | 54 | 18 | 15 | 54.0 |
| -32 | 2-12 | -26 | 1.5 / 8-12 | 1FO-3226 | 54 | 18 | 15 | 56.2 |
| -32 | 2-12 | -30 | 1.7 / 8-12 | 1FO-3230 | 54 | 18 | 15 | 54.0 |

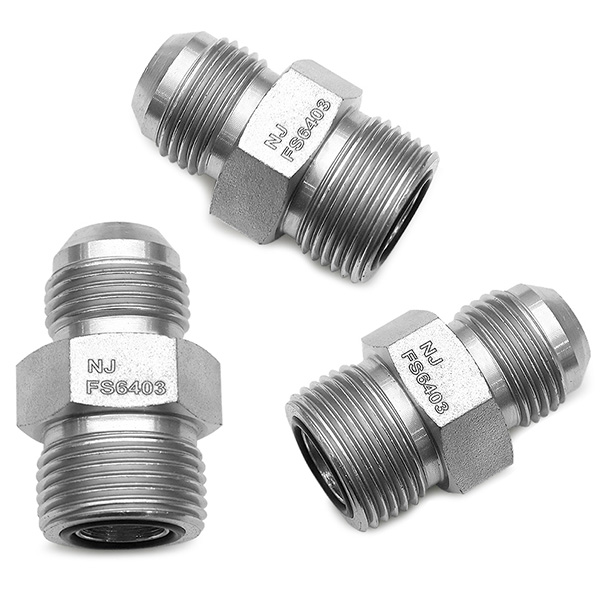

JIC Male x ORFS Male Straight Adapter (FS6403)
| Benang A | Benang B | Bahagian No | L | E | F | H1 | ||
| Dash | JIC | Dash | ORFS | mm | mm | mm | mm | |
| -07 | 7 / 16-20 | -09 | 9 / 16-18 | 1JF-0709 | 32 | 14 | 10 | 15.9 |
| -07 | 7 / 16-20 | -11 | 11 / 16-16 | 1JF-0711 | 34 | 14 | 11 | 19.1 |
| -09 | 9 / 16-18 | -11 | 11 / 16-16 | 1JF-0911 | 34 | 14 | 11 | 19.1 |
| -12 | 3 / 4-16 | -11 | 11 / 16-16 | 1JF-1211 | 38 | 17 | 11 | 22.2 |
| -12 | 3 / 4-16 | -13 | 13 / 16-16 | 1JF-1213 | 39 | 17 | 13 | 22.2 |
| -14 | 7 / 8-14 | -13 | 13 / 16-16 | 1JF-1413 | 40 | 19 | 13 | 25.4 |
| -14 | 7 / 8-14 | -16 | 1-14 | 1JF-1416 | 46 | 19 | 16 | 27.0 |
| -17 | 1.1 / 16-12 | -16 | 1-14 | 1JF-1716 | 50 | 22 | 16 | 31.8 |
| -17 | 1.1 / 16-12 | -19 | 1.3 / 16-12 | 1JF-1719 | 52 | 22 | 17 | 31.8 |
| -21 | 1.5 / 16-12 | -19 | 1.3 / 16-12 | 1JF-2119 | 55 | 23 | 17 | 38.1 |
| -21 | 1.5 / 16-12 | -23 | 1.7 / 16-12 | 1JF-2123 | 55 | 23 | 18 | 38.1 |
| -26 | 1.5 / 8-12 | -27 | 1.11 / 16-12 | 1JF-2627 | 58 | 24 | 18 | 44.5 |
ORFS Male x BSPP Male O-Ring + Penyesuai Lurus Jenis Cincin Penahan (1FG)
| A | B | Bahagian No | L | E | F | H1 | ||
| Dash | ORFS | Dash | BSPP | mm | mm | mm | mm | |
| -09 | 9 / 16-18 | -02 | 1 / 8-28 | 1FG-0902R | 26 | 10 | 8 | 17 |
| -09 | 9 / 16-18 | -04 | 1 / 4-19 | 1FG-0904R | 30 | 10 | 11 | 19 |
| -09 | 9 / 16-18 | -06 | 3 / 8-19 | 1FG-0906R | 31 | 10 | 11 | 22 |
| -11 | 11 / 16-16 | -04 | 1 / 4-19 | 1FG-1104R | 31 | 11 | 11 | 19 |
| -11 | 11 / 16-16 | -06 | 3 / 8-19 | 1FG-1106R | 31 | 11 | 11 | 22 |
| -11 | 11 / 16-16 | -08 | 1 / 2-14 | 1FG-1108R | 34 | 11 | 15 | 27 |
| -13 | 13 / 16-16 | -06 | 3 / 8-19 | 1FG-1306R | 34 | 13 | 11 | 22 |
| -13 | 13 / 16-16 | -08 | 1 / 2-14 | 1FG-1308R | 35 | 13 | 15 | 27 |
| -13 | 13 / 16-16 | -12 | 3 / 4-14 | 1FG-1312R | 43 | 13 | 15 | 32 |
| -16 | 1-14 | -08 | 1 / 2-14 | 1FG-1608R | 42 | 16 | 15 | 27 |
| -16 | 1-14 | -12 | 3 / 4-14 | 1FG-1612R | 45 | 16 | 15 | 32 |
| -19 | 1.3 / 16-12 | -08 | 1 / 2-14 | 1FG-1908R | 45 | 17 | 15 | 32 |
| -19 | 1.3 / 16-12 | -12 | 3 / 4-14 | 1FG-1912R | 45 | 17 | 15 | 32 |
| -19 | 1.3 / 16-12 | -16 | 1-11 | 1FG-1916R | 50 | 17 | 19 | 41 |
| -23 | 1.7 / 16-12 | -12 | 3 / 4-14 | 1FG-2312R | 48 | 18 | 19 | 41 |
| -23 | 1.7 / 16-12 | -16 | 1-11 | 1FG-2316R | 49 | 18 | 19 | 41 |
| -23 | 1.7 / 16-12 | -20 | 1.1 / 4-11 | 1FG-2320R | 50 | 18 | 19 | 50 |
| -27 | 1.11 / 16-12 | -20 | 1.1 / 4-11 | 1FG-2720R | 55 | 18 | 19 | 50 |
| -27 | 1.11 / 16-12 | -24 | 1.1 / 2-11 | 1FG-2724R | 58 | 18 | 19 | 55 |
| -32 | 2-12 | -24 | 1.1 / 2-11 | 1FG-3224R | 58 | 18 | 19 | 55 |
ORFS Lelaki x METRIC Lelaki (Meterai Berkapsul) Penyesuai Lurus (1FM)
| A | B | Bahagian No | L | E | F | H1 | ||
| Dash | ORFS | Dash | METRIK | mm | mm | mm | mm | |
| -09 | 9 / 16-18 | -12 | 12x1.5 | 1FM-0912 | 31 | 10 | 12 | 17 |
| -11 | 11 / 16-16 | -14 | 14x1.5 | 1FM-1114 | 33 | 11 | 12 | 19 |
| -11 | 11 / 16-16 | -16 | 16x1.5 | 1FM-1116 | 33 | 11 | 12 | 22 |
| -11 | 11 / 16-16 | -18 | 18x1.5 | 1FM-1118 | 34 | 11 | 12 | 24 |
| -13 | 13 / 16-16 | -18 | 18x1.5 | 1FM-1318 | 35 | 13 | 12 | 24 |
| -13 | 13 / 16-16 | -22 | 22x1.5 | 1FM-1322 | 39 | 13 | 14 | 27 |
| -16 | 1-14 | -22 | 22x1.5 | 1FM-1622 | 42 | 16 | 14 | 27 |
| -19 | 1.3 / 16-12 | -22 | 22x1.5 | 1FM-1922 | 45 | 18 | 14 | 32 |
Butiran
Penyesuai ORFS mempunyai pelbagai kelebihan, termasuk rintangan tekanan tinggi, prestasi pengedap yang baik, rintangan haus dan kakisan, sambungan dan pembongkaran pantas, struktur ringkas dan kos rendah, menjadikannya pemasangan sambungan yang disyorkan dalam sistem hidraulik. NJ menyediakan penyesuai ORFS berkualiti tinggi, keselamatan dan kebolehpercayaan boleh dijamin.
1. Ujian semburan garam mencapai 120 jam.
2. Benarkan perubahan material, seperti 316SS.
3. 40000+ stok SAE, BSP METRIC adater dan Tiada keperluan MOQ daripada stok.
4. Penghantaran cepat dalam 7-15 hari.
5. Perkhidmatan pasukan jualan 24 jam.
6. Projek OEM diterima.
