Penyesuai dan Kelengkapan Tahan Karat DIN British Gred Anti-karat SAE Tinggi
Premium hydraulic connectors designed for exceptional performance and longevity in high-temperature (up to 550°F) and high-pressure (up to 10,000 PSI) settings are stainless steel adapters and fittings. These fittings, which are made of 316/304 stainless steel, have unparalleled corrosion resistance, which makes them perfect for industrial systems, marine applications, and abrasive fluids. They guarantee leak-proof connections across crucial hydraulic and pneumatic systems and come in a variety of thread standards (BSP, NPT, JIC, SAE, and Metric) and configurations (straight, elbow, tee, and cross).
Penerangan Produk
1. Material & Grades
316 Stainless Steel: Superior corrosion resistance against saltwater, chemicals, and acids (ideal for marine/oil/gas).
304 Stainless Steel: Cost-effective for general industrial use with moderate chemical exposure.
Optional Grades: 321 (high-temp), 17-4PH (high-strength) for specialized needs.
2. Jenis & Saiz Benang
Global Compatibility: BSP (British), NPT (American), JIC (37° flare), SAE, Metric threads.
Size Range: 1/8 inch to 2 inches, covering most hydraulic and pneumatic requirements.
3. Penilaian Tekanan & Suhu
Adapters: 3,000–10,000 PSI (size-dependent).
Hose Fittings: Up to 5,000 PSI for dynamic applications.
Temperature Range: -50°F to 550°F, suitable for cryogenic to high-heat fluids.
4. Konfigurasi

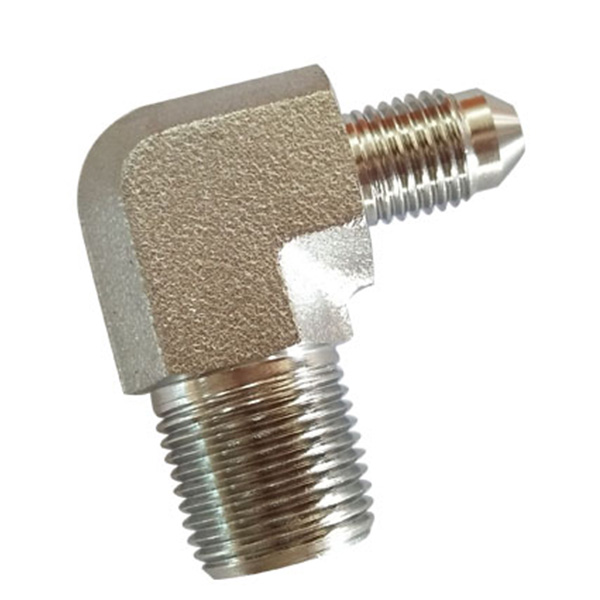

Straight, 45°/90° Elbow: Flexible routing in tight spaces.

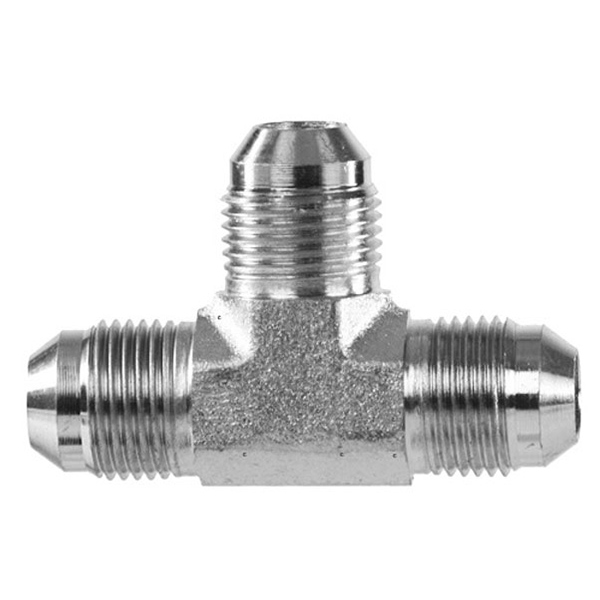

Tee, Cross, Bulkhead: For complex system layouts.
SS-2501
SS-2502
SS-2503
SS-2603Recent Top-Selling Regions
North America: Oil/gas, chemical processing (NPT/JIC standards).
Europe: Food/pharmaceutical industries (DIN/BSP, 316L for hygiene).
Middle East & Asia: Marine, desalination plants (316 for saltwater resistance).
Butiran
| Keluli Tahan Karat lwn. Bahan Lain | |||
| Ciri | Keluli Tahan Karat (316/304) | Keluli karbon | Brass |
| Rintangan kakisan | ★★★★★ (Excellent) | ★★☆ (Requires coating) | ★★★★ (Good, but not for acids) |
| Kekuatan | ★★★★★ (10,000 PSI) | ★★★★★ (High, but rust-prone) | ★★★☆ (Max 5,000 PSI) |
| suhu | ★★★★★ (550°F) | ★★★★ (400°F) | ★★★☆ (350°F) |
| kos | ★★★☆ (Higher) | ★★☆☆ (Low) | ★★★☆ (Moderate) |
| terbaik Untuk | Harsh environments, high pressure/temperature | Budget systems (with maintenance) | Low-pressure plumbing |
Kelebihan Utama
✔ Unmatched Durability: 3–5x longer lifespan than carbon steel in corrosive environments.
✔ Safety: No rust/debris contamination in sensitive systems (e.g., food, pharma).
✔ Low Maintenance: No plating or galvanizing needed.
✔ Global Standards: Meets SAE, DIN, ISO, and ASTM specifications.
Permohonan
✔ Oil & Gas: Offshore rigs, pipelines (resists H2S/sour gas).
✔ Chemical Processing: Acid/alkali fluid transfer.
✔ Marine: Saltwater cooling, ballast systems.
✔ Food/Beverage: 316L for sanitary fittings.
✔ Pharmaceutical: Non-reactive, sterilizable surfaces.
